Storefront Designer

Customise the visual appearance of your storefront — colours, fonts, logo, layout, and more.

To open the Storefront Designer, go to the Website overview page in MOBI for the head office you want to edit, then click Designer.

The page is divided into:

  • A left-hand column containing collapsible settings sections:
    • Logo
    • Colours
    • Typography
    • Settings
    • Background Images
  • A right-hand live preview panel that updates in real time as you make changes.

Live Preview

The live preview updates immediately as you adjust settings. Changes are not visible to customers until you click Save Storefront at the bottom of the page.

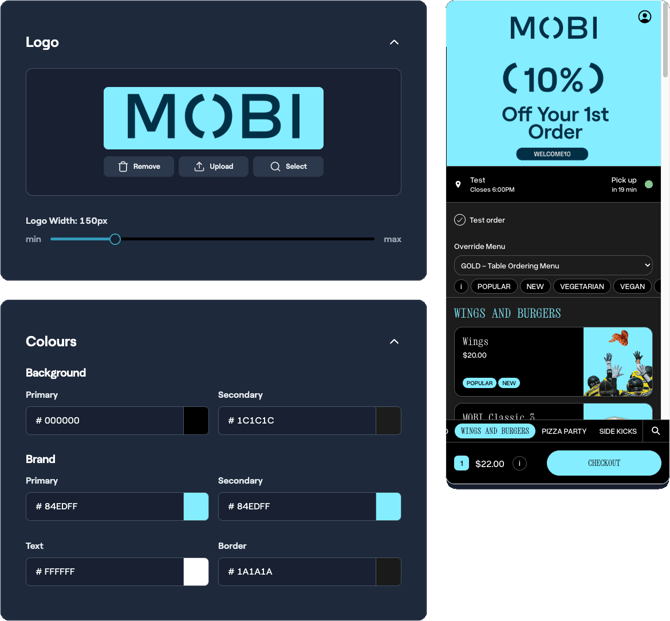

sd-main

Mobile Preview

On mobile devices:

  1. Tap Preview Storefront to open the preview.
  2. Tap Close Preview when finished.

Top Right Actions

  • Open Storefront — Opens the live storefront in a new tab.
  • Learn More — Opens this help article.

sd-logo

Logo Image

Upload your brand logo using the image selector. You can:

  • Upload a new image
  • Select an image from the media library

Supported formats:

  • JPG
  • PNG

Logo Width

Use the slider to resize the logo between 120px and 280px wide.

The logo height automatically scales to prevent distortion.

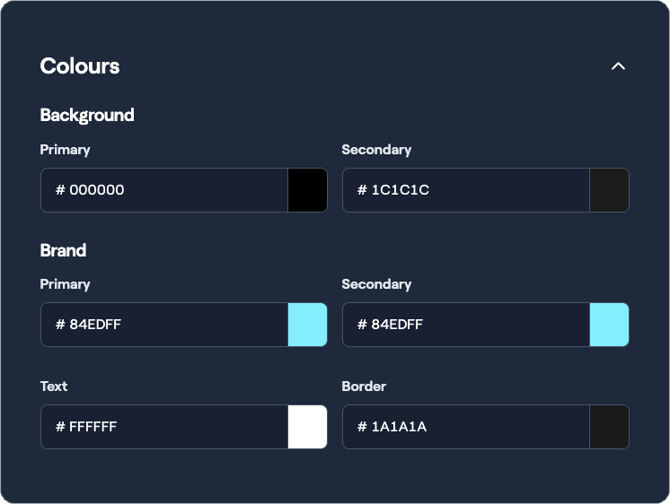

sd-colours

Colours

The storefront uses six colour slots to control the overall appearance.

It is recommended to begin with the brand’s primary colour from the logo, then adjust secondary colours as needed.

Many secondary values automatically calculate based on the primary background colour.

Background

Primary

The main storefront background colour.

Default: #ffffff (white)

Setting the background to:

  • Pure white (#ffffff) automatically enables light mode
  • Pure black (#000000) automatically enables dark mode

When this happens, the following values also auto-update:

  • Secondary Background
  • Text Colour
  • Border Colour

These values can still be overridden manually afterwards.

Secondary

Used for:

  • Accent areas
  • Cards
  • Secondary surfaces

This colour is automatically derived from the brightness of the primary background.

Recommended Usage

Keep Primary and Secondary backgrounds visually close in tone.

Examples:

  • White + light grey
  • Black + dark grey
  • Light green + dark green

Brand

Primary

The main brand colour used for:

  • Buttons
  • Key interface elements

Secondary

A complementary brand colour used for:

  • Logo backgrounds
  • Product image overlays when Colour Images is enabled

Use Secondary Brand sparingly behind logos to maintain readability and contrast.

Text & Border

Text

Primary text colour.

Automatically derived from background brightness:

  • Light backgrounds use dark text
  • Dark backgrounds use light text

This value can be manually overridden.

Border

Used for:

  • Borders
  • Dividers
  • Separators

Automatically calculated as a blend between the background and text colours.

This value can also be overridden manually.

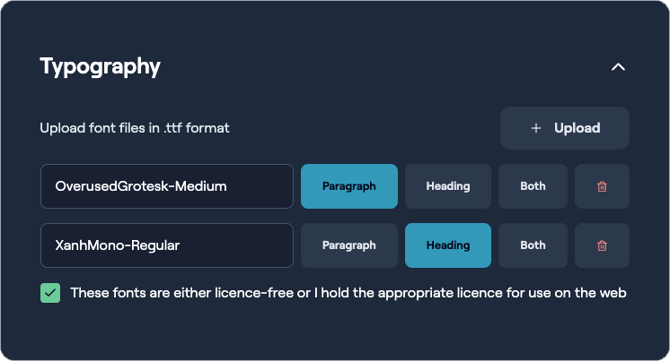

sd-type

Typography

Custom fonts can be uploaded and applied to the storefront.

Supported font format:

  • .ttf only

Upload Font

Upload a .ttf file.

The filename (excluding the extension) becomes the font family name.

License Agreement

When custom fonts are uploaded, you must tick the licence agreement checkbox confirming:

  • The fonts are licence-free
  • Or you hold the appropriate licence

The Save Storefront button remains disabled until this confirmation is completed.

Font Roles

Each uploaded font includes the following role options:

Paragraph

Applies the font to:

  • Body text

Heading

Applies the font to:

  • Headings
  • Bold text

Both

Applies the font to all storefront typography.

Delete

Removes the uploaded font.

If the deleted font was assigned to a role, that role automatically reverts to the system default font.

Sourcing Fonts

Licence-free fonts are commonly available through Google Fonts.

If you are unsure whether a font requires licensing:

  • Confirm with the client that the font is free for web use
  • Or confirm they hold the appropriate licence

Improper font licensing may have legal consequences.

Important

Do not procure fonts on behalf of the client.

Always ensure the client has the correct licensing rights before use.

Settings

The Settings section contains style and layout controls that determine how storefront components and menus are displayed.

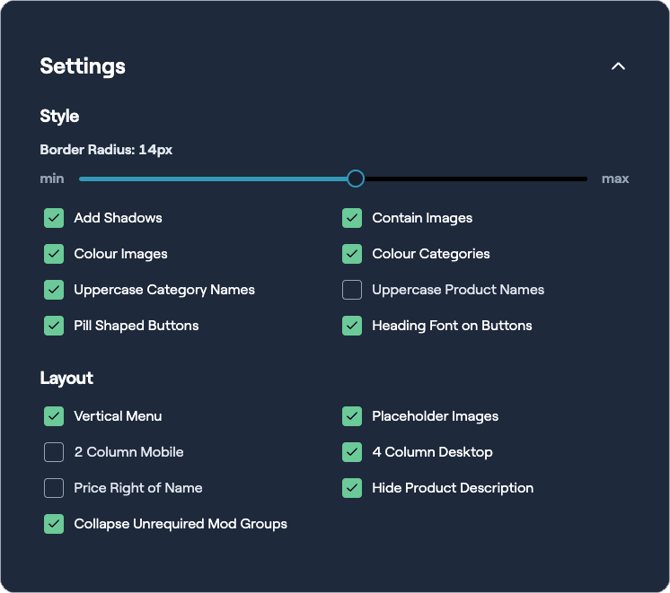

sd-settings

Style Settings

Border Radius

Controls corner roundness for:

  • Cards
  • Buttons
  • Containers

Range:

  • 2px to 24px

Add Shadows

Enables drop shadows on cards and containers.

Contain Images

Preserves product image aspect ratio inside the image frame instead of cropping to fill.

Colour Images

Applies a brand-colour overlay to product images using the Secondary Brand colour.

Colour Categories

Applies brand-colour styling to:

  • Category labels
  • Badges

Uppercase Category Names

Displays category names in uppercase.

Uppercase Product Names

Displays product names in uppercase.

Pill Shaped Buttons

Uses fully rounded pill-style buttons instead of lightly rounded buttons.

Heading Font on Buttons

Uses the heading font for button labels instead of the paragraph font.

Layout Settings

Vertical Menu

Switches the menu layout from horizontal to vertical sidebar navigation.

Typically recommended when:

  • Text is displayed on the left
  • Images are displayed on the right

Placeholder Images

Displays placeholder images for products without images.

2 Column Mobile

Displays products in a two-column grid on mobile devices.

4 Column Desktop

Displays products in a four-column grid on desktop devices instead of three.

Price Right of Name

Displays product pricing beside the product name instead of below it.

Hide Product Description

Hides product description text from the listing view.

Collapse Unrequired Mod Groups

Automatically collapses optional modifier groups on the product detail page.

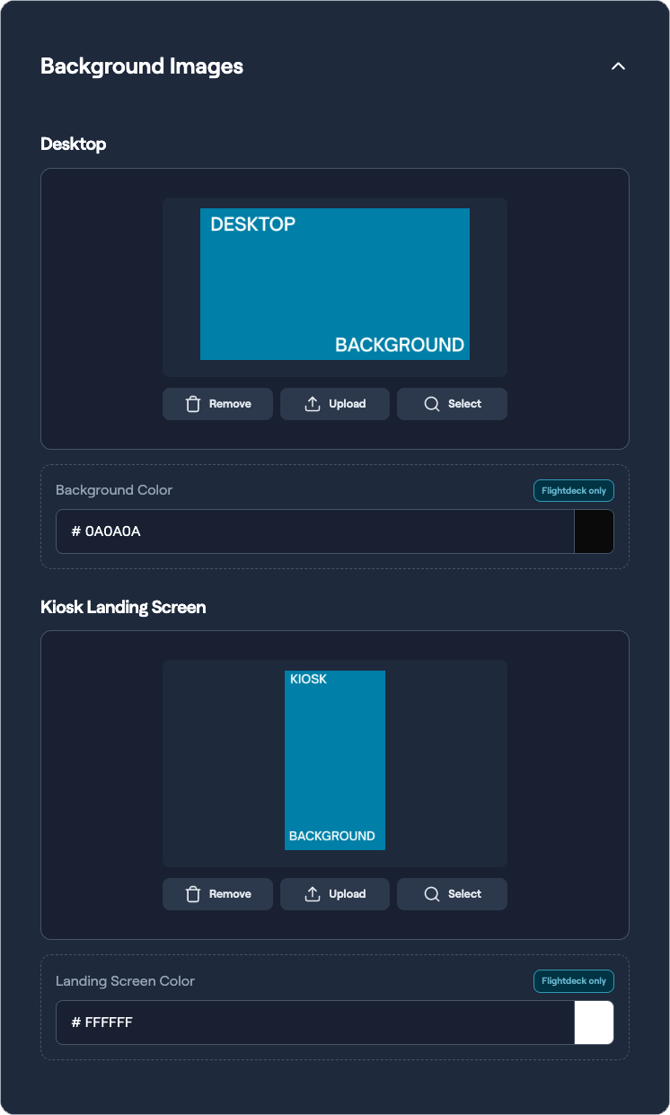

sd-bg-imgs

Background Images

For desktop storefronts and kiosk displays, full-screen background images and fallback colours can be configured.

Desktop Background

Desktop Background Image

Recommended size:

  • 1920 × 1080

Used as the storefront desktop background image.

Desktop Background Colour

Used as:

  • A fallback colour
  • An overlay colour

Available in Flight Deck only.

Kiosk Landing Screen

Kiosk Landing Screen Image

Recommended size:

  • 1080 × 1920 (portrait)

Used for kiosk landing screens.

Kiosk Landing Screen Colour

Used as:

  • A fallback colour
  • An overlay colour

Available in Flight Deck only.

Image Upload Requirements

Images that do not match the required dimensions are automatically rejected.

Saving Changes

Click Save Storefront to apply and publish your changes.

Save Button Behaviour

The button remains disabled until:

  • Changes are detected
  • Font licensing requirements are confirmed when custom fonts are uploaded

After a successful save, a confirmation message appears.
